CRAVEzero Life Cycle Management Tool

Getting Started

Track and Manage an nZEB Project Throughout the Whole Life Cycle

Life Cycle Management Tool PDF Manual Tutorial Video

Getting Started with the CRAVEzero Life Cylce Management Web Tool

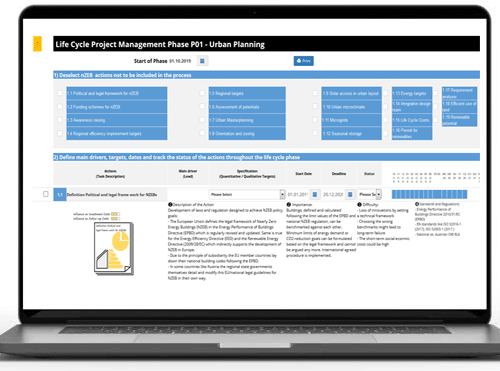

Track and manage a nZEB project throughout the whole life cycle with this nZEb project management framework. Use this module to plan, execute and track nZEB specific actions.

Step 1 – Getting Started

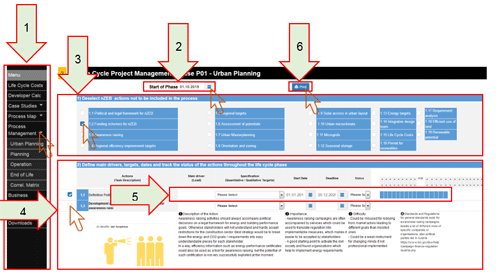

The six main functions

1 Select "Process Management” at the side menu in the left to go to the life cycle project management and choose a phase
2 Select a date to choose the start of the phase
3 Deselect actions which “should not” be included in the process
4 Deselect an action to get specific information about the action
5 Enter further information about the project
6 Click print to save your entries

Step 2 – Enter detailed information

More detailed information on the individual actions can be retrieved by clicking on the checkbox to the left of the action.

In addition, project-specific information can be entered here:
- Main driver: The main stakeholder responsible for the action
- Specification: High, medium and low targets can be selected depending on the goal you want to achieve
- Start Date: Enter the start date of the respective action
- Deadline: Enter the end date/ deadline of the respective action (Subsequently, the timeline as “a bar” is displayed a the right side.
- Status: A selection between delayed, completed, pending and ongoing helps to track the status of the actions throughout the phase over time

Go to the Life Cycle Management Webtool
